Create a contour

This notebook calculates a bathymetry contour but should be applicable to an arbitrary variable, such as sea surface height. There are two different approaches presented in this notebook to select a contour:

  • Approach 1: Extracting the coordinates using matplotlib’s Path class

    • assumes the contour you want to select is continuous

    • gives you the cells closest to the selected contour, can be deeper or shallower

  • Approach 2: Custom method for selecting and tracing a specific contour

    • no cells deeper than selected contour value (unless manually added which might be necessary)

We then create some masks to indicate which direction is across the contour at each position along the contour. This step is useful in case you want to calculate cross-contour transport (the mask will work for both a B-grid and a C-grid). Both approaches ensure that the contour is (i) continuous and (ii) there all points are connected adjacently (not just diagonally) which is required for correct transport calculations.

This notebook goes through selecting the 1000 m isobath around Antarctica which we often use to separate the Antarctic continental shelf from the offshore Southern Ocean. We use the OM2-01 grid for approach 1 and the OM3-25km grid for approach 2.

Known locations of the Antarctic 1000 m bathymetry contour for commonly used models:

  • OM2-01: ‘/g/data/ik11/Antarctic_slope_contour_1000m.npz’

  • PanAnt-01: ‘/g/data/ik11/Antarctic_slope_contour_1000m_MOM6_01deg.nc’

  • PanAnt-005: ‘/g/data/ik11/Antarctic_slope_contour_1000m_MOM6_005deg.nc’

  • OM3-25km: ‘/g/data/ol01/Antarctic_slope_contour_1000m_OM3_25km.nc’

Computation times shown used conda environment analysis3-26.06 on 28 broadwell cpus.

Alert: After including the additional cases the contour number doesn’t always monotonically increase along the contour. At the moment, the two indices that are set at the same time are adjacent numbers, whereas if you were following the contour you’d expect their numbers to be 2 apart with the other coordinate in between. See https://github.com/COSIMA/cosima-recipes/issues/383.

First, we load useful packages:

[1]:

import pandas as pd
import intake
import dask
import matplotlib.pyplot as plt
import netCDF4 as nc
import xarray as xr
import numpy as np
import cmocean
import cv2 # need to install opencv-python for this, used in approach 2

from dask.distributed import Client

catalog = intake.cat.access_nri

[2]:

client = Client(threads_per_worker=1)
client

/g/data/xp65/public/apps/med_conda/envs/analysis3-26.06/lib/python3.12/site-packages/distributed/node.py:188: UserWarning: Port 8787 is already in use.
Perhaps you already have a cluster running?
Hosting the HTTP server on port 33375 instead
  warnings.warn(

[2]:

Client

Client-cc6c11a2-750d-11f1-96a3-000003bdfe80

Connection method: Cluster object Cluster type: distributed.LocalCluster
Dashboard: /proxy/33375/status

Cluster Info

Approach 1

Extracting the coordinates using matplotlib’s Path class

Choose experiment

[3]:

catalog = intake.cat.access_nri
experiment = '01deg_jra55v13_ryf9091' # the RYF90-91 experiment

Load quantity we want a contour of, e.g. bathymetry

[4]:

ht = catalog[experiment].search(variable="ht", frequency="fx").to_dask().ht
hu = catalog[experiment].search(variable="hu", frequency="fx").to_dask().hu

/g/data/xp65/public/apps/med_conda/envs/analysis3-26.06/lib/python3.12/site-packages/intake_esm/source.py:314: ConcatenationWarning: Attempting to concatenate datasets without valid dimension coordinates: retaining only first dataset. Request valid dimension coordinate to silence this warning.
  warnings.warn(
/g/data/xp65/public/apps/med_conda/envs/analysis3-26.06/lib/python3.12/site-packages/intake_esm/source.py:314: ConcatenationWarning: Attempting to concatenate datasets without valid dimension coordinates: retaining only first dataset. Request valid dimension coordinate to silence this warning.
  warnings.warn(

Choose a latitude range

Make sure the contour fits in the range, but there is not too much extra space. Extra space slows down the computation.

We must make sure that this latitude range is so that the t-cells are always south and west of the u-cells.

This is important because the meridional and zonal transports occur on different grids to each other. We can check this by loading the u-cell and t-cell coordinates.

We choose this convention so that later on when we create numpy grids of where the contour is and in what direction the contour goes.

[5]:

lat_range = slice(-82, -59)

[6]:

hu = hu.sel(yu_ocean=lat_range)
ht = ht.sel(yt_ocean=lat_range)

Choose your desired contour value

[7]:

contour_depth = 1000 # metres

Plot your data (always good idea :))

[8]:

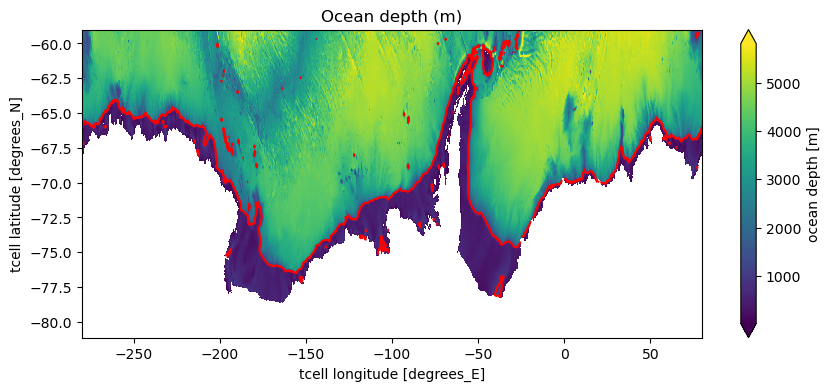

fig = plt.figure(figsize = (10, 4))

ht.plot(extend='both', cbar_kwargs={'label': "ocean depth [m]"})
ht.plot.contour(levels = [contour_depth], colors = 'r', linestyles = '-')
plt.title('Ocean depth (m)');
../_images/03-Advanced-Recipes_Create_contour_15_0.png

Fill in land with zeros and load:

[9]:

ht = ht.fillna(0).load()

Contour is on t-grid (we assume ACCESS-OM2 B-grid transports)

[10]:

grid_sel = 't'
x_var = ht['xt_ocean']
y_var = ht['yt_ocean']

Select the contour

We need to isolate out the single contour along the slope and get rid of the contours on the little isolated sea mounts and depressions.

[11]:

fig = plt.figure(figsize = (10, 4))
sc = plt.contour(ht, levels=[contour_depth])

path_vertices = (sc.get_paths()[0]).vertices
x_vertices = path_vertices[:, 0]
y_vertices = path_vertices[:, 1]
../_images/03-Advanced-Recipes_Create_contour_21_0.png

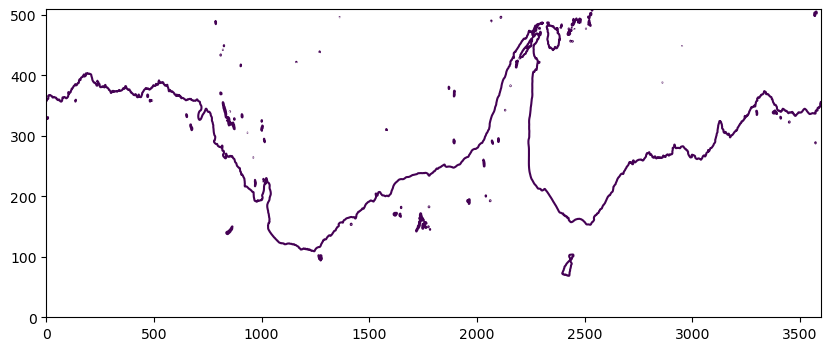

This list of path_vertices includes all of the paths in the above figure. But we want to only select the longest contour. The contours are all stacked in x_vertices and y_vertices, with the longest contour listed first. We need to find the end of the longest contour and cut x_vertices/y_vertices at that point.

Along our desired contour, x_vertices/y_vertices should increase/decrease by max 1, so we can use the location where diff(x_vertices) > 1 to find the end of our desired contour.

When we call np.diff, we wind up with floating point numbers. To get a mask where the difference is greater than 1, we can just turn the result of np.diff(x_vertices) back into an array of integers using .astype(int) on it - so we can cleanly check if the result is greater than 1.

[12]:

last_contour_index = np.where(np.abs(np.diff(x_vertices).astype(int)) > 1)[0][0]

x_contour = x_vertices[:last_contour_index + 1]
y_contour = y_vertices[:last_contour_index + 1]

# Check desired contour looks right:
fig = plt.figure(figsize = (10, 4))

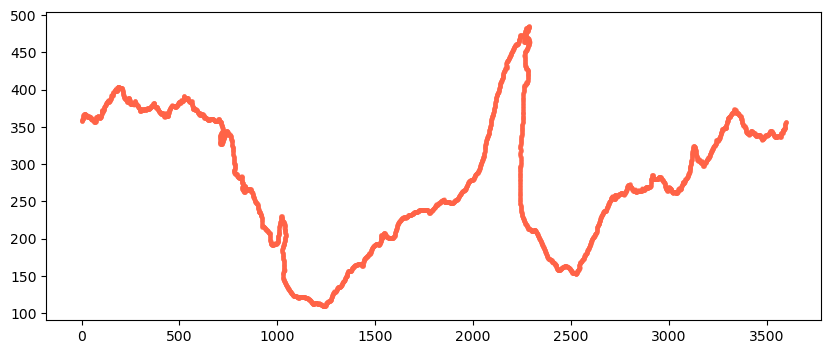

plt.scatter(x_contour, y_contour, s=5, alpha=0.5, color='tomato');
../_images/03-Advanced-Recipes_Create_contour_23_0.png

x_contour and y_contour are not integers with this updated contour method. We need to convert them to integers so we can use them as indices for selecting data on the contour.

[13]:

x_contour = np.round(x_contour).astype(int)
y_contour = np.round(y_contour).astype(int)

# check that the difference between coords of contour never increase by more than 1:
if np.max(np.abs(np.diff(x_contour))) != 1:
    print('help! x_contour increases by more than 1 between coords.')

if np.max(np.abs(np.diff(y_contour))) != 1:
    print('help! y_contour increases by more than 1 between coords.')

Processing

Now process these coordinates to make sure there are no double ups.

N.B: It can be tempting to use numpy’s unique functionality to do this sort of task - be careful, as it won’t preserve order!

[14]:

# Difference between two neighbouring indices
diff_x_contour = np.diff(x_contour)
diff_y_contour = np.diff(y_contour)

# Get a list with the indices of duplicates
diff_ind = []
for ii in range(len(diff_x_contour)):
    if (diff_x_contour[ii]==0) and (diff_y_contour[ii]==0):
        diff_ind.append(ii)

[15]:

# Now remove the indices (start from the end so the indices don't shift)
for ii in range(len(diff_ind)):
    index = diff_ind[::-1][ii]
    x_contour = np.delete(x_contour, index)
    y_contour = np.delete(y_contour, index)

[16]:

ht_contour = np.zeros(len(x_contour))

for ii in range(len(ht_contour)):
    ht_contour[ii] = ht[y_contour[ii], x_contour[ii]]

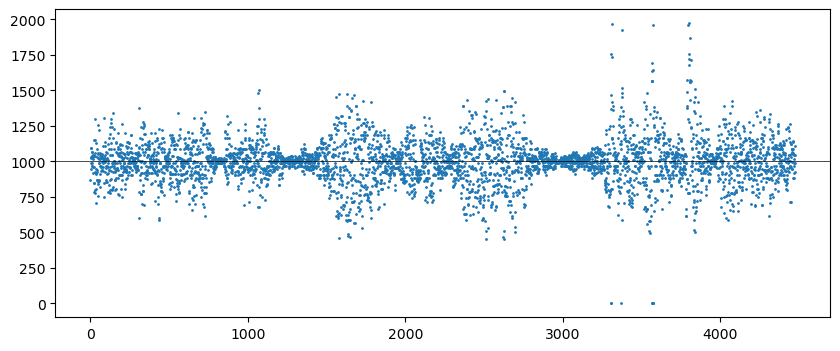

Due to the discrete grid, the values on our contour are not exactly the same. We check this makes sense – if this plot is blank, then something has gone wrong.

[17]:

fig = plt.figure(figsize=(10, 4))

plt.plot(ht_contour, 'o', markersize=1)
plt.axhline(contour_depth, color='k', linewidth=0.5);
../_images/03-Advanced-Recipes_Create_contour_31_0.png
[18]:

# Number of grid points on the contour
num_points = len(x_contour)

Now we number the points along the contour

[19]:

# start numbering from 1 not 0:
contour_mask_numbered = np.arange(1, len(x_contour)+1)

[20]:

contour_mask = xr.zeros_like(ht)

for ii in range(num_points):
    contour_mask[y_contour[ii], x_contour[ii]] = contour_mask_numbered[ii]

[21]:

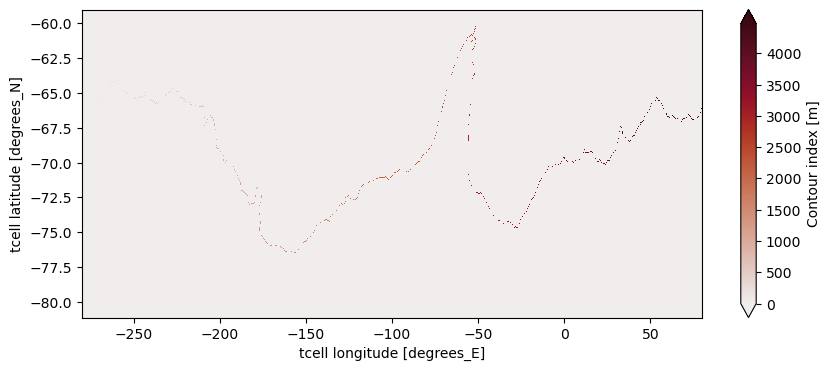

contour_mask.attrs['long_name'] = 'Contour index'
plt.figure(1, figsize=(10, 4))
contour_mask.plot(extend='both', cmap = cmocean.cm.amp);
../_images/03-Advanced-Recipes_Create_contour_36_0.png

Create mask

Now we create a mask below contour so that the direction of the contour can be determined

[22]:

%%time

mask_value = -1000
contour_mask_numbered = contour_mask

# fill in points to north of contour:
contour_masked_above = np.copy(contour_mask_numbered)
contour_masked_above[-1, 0] = mask_value

# from top left:
for ii in range(len(contour_mask.xt_ocean)-1):
    for jj in range(len(contour_mask.yt_ocean))[::-1][:-1]:
        if contour_masked_above[jj, ii] == mask_value:
            if contour_masked_above[jj-1, ii] == 0:
                contour_masked_above[jj-1, ii] = mask_value
            if contour_masked_above[jj, ii+1] == 0:
                contour_masked_above[jj, ii+1] = mask_value

#from top right:
for ii in range(len(contour_mask.xt_ocean))[::-1][:-1]:
    for jj in range(len(contour_mask.yt_ocean))[::-1][:-1]:
        if contour_masked_above[jj, ii] == mask_value:
            if contour_masked_above[jj-1, ii] == 0:
                contour_masked_above[jj-1, ii] = mask_value
            if contour_masked_above[jj, ii-1] == 0:
                contour_masked_above[jj, ii-1] = mask_value

# from bottom right:
for ii in range(len(contour_mask.xt_ocean))[::-1][:-1]:
    for jj in range(len(contour_mask.yt_ocean)-1):
        if contour_masked_above[jj, ii] == mask_value:
            if contour_masked_above[jj+1, ii] == 0:
                contour_masked_above[jj+1, ii] = mask_value
            if contour_masked_above[jj, ii-1] == 0:
                contour_masked_above[jj, ii-1] = mask_value

#from bottom left:
for ii in range(len(contour_mask.xt_ocean)-1):
    for jj in range(len(contour_mask.yt_ocean)-1):
        if contour_masked_above[jj, ii] == mask_value:
            if contour_masked_above[jj+1, ii] == 0:
                contour_masked_above[jj+1, ii] = mask_value
            if contour_masked_above[jj, ii+1] == 0:
                contour_masked_above[jj, ii+1] = mask_value

CPU times: user 7.57 s, sys: 2.85 s, total: 10.4 s
Wall time: 8.53 s

[23]:

plt.figure(1, figsize=(10, 4))

plt.pcolormesh(contour_mask.xt_ocean, contour_mask.yt_ocean, contour_masked_above)
plt.colorbar()

[23]:

<matplotlib.colorbar.Colorbar at 0x154f9ed881d0>
../_images/03-Advanced-Recipes_Create_contour_39_1.png

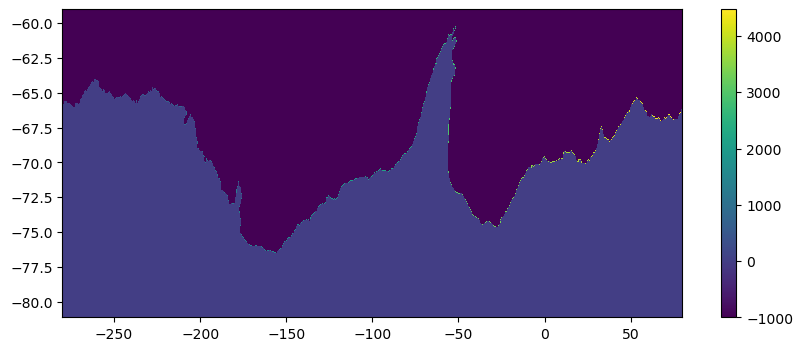

North of the contour, values have been filled in to be -1000, and it is thus a different colour in the plot.

Direction of cross-contour transport

Now we can use the mask to determine whether the transport across the contour should be north, east, south or west (the grid is made of discrete square(ish) shaped cells). This is done by looping through the contour points and determining in which directions there are zeros (i.e. below contour) and -1000 (i.e. above contour). This means the orientation of the contour can be determined. This is saved as mask_x_transport, which has -1 and +1 in a 2D (x and y) array where the contour has eastward transport, and mask_y_transport which as -1 and +1 for coordinates with northward transport. All other positions in the array are 0. This means that multiplying the northward transport ty_trans by the mask_y_transport gives all the northward transport across the contour, and zeros everywhere else (e.g. where contour goes upwards and cross-contour transport is thus eastward).

[ ]:

%%time
mask_x_transport = np.zeros_like(contour_mask_numbered)
mask_y_transport = np.zeros_like(contour_mask_numbered)

mask_y_transport_numbered = np.zeros_like(contour_mask_numbered)
mask_x_transport_numbered = np.zeros_like(contour_mask_numbered)

# make halos:
shape = contour_masked_above.shape
contour_masked_above_halo = np.zeros((shape[0], shape[1]+2))
contour_masked_above_halo[:, 0] = contour_masked_above[:, -1]
contour_masked_above_halo[:, 1:-1] = contour_masked_above
contour_masked_above_halo[:, -1] = contour_masked_above[:, 0]

new_number_count = 1
for mask_loc in range(1, int(np.max(contour_mask_numbered))+1):
    index_i = np.where(contour_mask_numbered==mask_loc)[1]
    index_j = np.where(contour_mask_numbered==mask_loc)[0]
    # if point above is towards Antarctica and point below is away from Antarctica:
    # take transport grid point to north of t grid:
    if (contour_masked_above[index_j+1, index_i]==0) and (contour_masked_above[index_j-1, index_i]!=0):
        mask_y_transport[index_j, index_i] = -1
        # important to do
        mask_y_transport_numbered[index_j, index_i] = new_number_count
        new_number_count += 1
    # if point below is towards Antarctica and point above is away from Antarctica:
    # take transport grid point to south of t grid:
    elif (contour_masked_above[index_j-1, index_i]==0) and (contour_masked_above[index_j+1, index_i]!=0):
        mask_y_transport[index_j-1, index_i] = 1
        mask_y_transport_numbered[index_j-1, index_i] = new_number_count
        new_number_count += 1
    # if point below and point above are BOTH towards Antarctica:
    # take transport grid point to south of t grid:
    elif (contour_masked_above[index_j-1, index_i]==0) and (contour_masked_above[index_j+1, index_i]==0):
        mask_y_transport[index_j-1, index_i] = 1
        mask_y_transport[index_j, index_i] = -1
        mask_y_transport_numbered[index_j-1, index_i] = new_number_count
        mask_y_transport_numbered[index_j, index_i] = new_number_count+1
        new_number_count += 2
    # if point to right is towards Antarctica and point to left is away from Antarctica:
    # zonal indices increased by 1 due to halos
    # take transport grid point on right of t grid:
    if (contour_masked_above_halo[index_j, index_i+2]==0) and (contour_masked_above_halo[index_j, index_i]!=0):
        mask_x_transport[index_j, index_i] = -1
        mask_x_transport_numbered[index_j, index_i] = new_number_count
        new_number_count += 1
    # if point to left is towards Antarctica and point to right is away from Antarctica:
    # take transport grid point on left of t grid:
    elif (contour_masked_above_halo[index_j, index_i]==0) and (contour_masked_above_halo[index_j, index_i+2]!=0):
        mask_x_transport[index_j, index_i-1] = 1
        mask_x_transport_numbered[index_j, index_i-1] = new_number_count
        new_number_count += 1
    # if point to left and right BOTH toward Antarctica
    elif (contour_masked_above_halo[index_j, index_i]==0) and (contour_masked_above_halo[index_j, index_i+2]==0):
        mask_x_transport[index_j, index_i-1] = 1
        mask_x_transport[index_j, index_i] = -1
        mask_x_transport_numbered[index_j, index_i-1] = new_number_count
        mask_x_transport_numbered[index_j, index_i] = new_number_count+1
        new_number_count += 2

[ ]:

# Plot the mask for the x-transport:
plt.figure(1, figsize=(10, 4))

plt.pcolormesh(contour_mask.xt_ocean, contour_mask.yt_ocean, mask_x_transport,
               cmap=cmocean.cm.balance, vmin=-1.5, vmax=1.5)
plt.colorbar();

As can be seen, in mask_x_transport there is red (+1) where eastward transport crosses the contour, and blue (-1) where westward transport crosses the contour (in the net northward direction). There are zeros everywhere else.

We now have the coordinates of the contours, and whether the x or y transport is needed to calculate cross-contour transport.

Here we convert the contour masks to a dataset (which could be saved and reloaded). We need to ensure the lat / lon coordinates correspond to the actual data location:

  • The y masks are used for ty_trans, so like vhrho this should have dimensions (yu_ocean, xt_ocean).

  • The x masks are used for tx_trans, so like uhrho this should have dimensions (yt_ocean, xu_ocean).

Hint: You can set the actual name to always be simply latitude/longitude irrespective of the variable to make concatenation of transports in both direction and sorting possible. An example is given in Cross_contour_transport.ipynb.

[ ]:

# Create dataset
ds_approach1 = xr.Dataset(
    {
        "mask_x_transport": (("yt_ocean", "xu_ocean"), mask_x_transport),
        "mask_y_transport": (("yu_ocean", "xt_ocean"), mask_y_transport),
        "mask_x_transport_numbered": (("yt_ocean", "xu_ocean"), mask_x_transport_numbered),
        "mask_y_transport_numbered": (("yu_ocean", "xt_ocean"), mask_y_transport_numbered),
        "contour_masked_above": (("yt_ocean", "xt_ocean"), contour_masked_above),
        "contour_mask_numbered": (("yt_ocean", "xt_ocean"), contour_mask_numbered.values),
    },
    coords={
        "xt_ocean": ht.xt_ocean,
        "yt_ocean": ht.yt_ocean,
        "xu_ocean": hu.xu_ocean,
        "yu_ocean": hu.yu_ocean,
    },
)

And plot just to confirm that we didn’t mess up anything.

[28]:

plt.figure(1, figsize=(10, 4))

ds_approach1.mask_x_transport.plot(cmap=cmocean.cm.balance, vmin=-1.5, vmax=1.5);

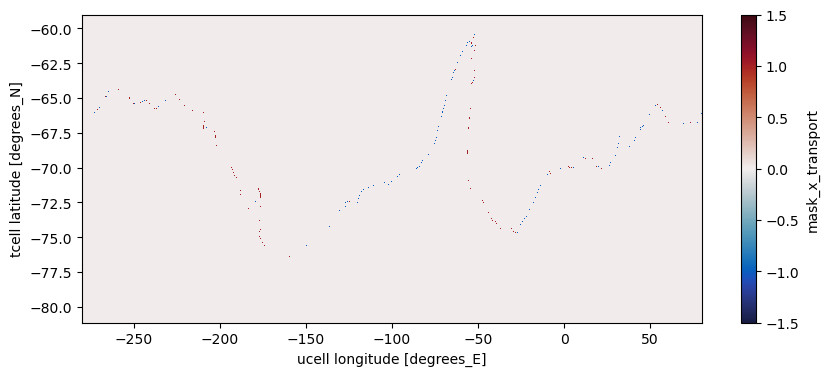

../_images/03-Advanced-Recipes_Create_contour_46_0.png

Lets use the mask we created to plot surface temperature on the Antarctic contiental shelf.

Load surface temperature

[29]:

# Define year to open
dates_2086 = '2086.*'

temp = catalog[experiment].search(
    variable='surface_temp',
    frequency="1mon",
    start_date=dates_2086
).to_dask()

temp = temp.sel(yt_ocean=lat_range).surface_temp.mean('time')

Create the shelf mask

[30]:

shelf_mask = ds_approach1.contour_masked_above.where(ds_approach1.contour_masked_above==0, 1)
shelf_mask = shelf_mask.where(shelf_mask==1)

Select shelf

[31]:

temp_masked = temp.where(shelf_mask.isnull())

Let’s also select the 1000 m contour

[32]:

slope_contour = ds_approach1.contour_masked_above.where(ds_approach1.contour_masked_above>0)
slope_contour = slope_contour/slope_contour

We can now make the plot

[33]:

plt.figure(1, figsize=(10, 4))

temp_masked.plot()
slope_contour.fillna(2).plot.contour(levels=[0,1], colors='k', linewidths=1.5);

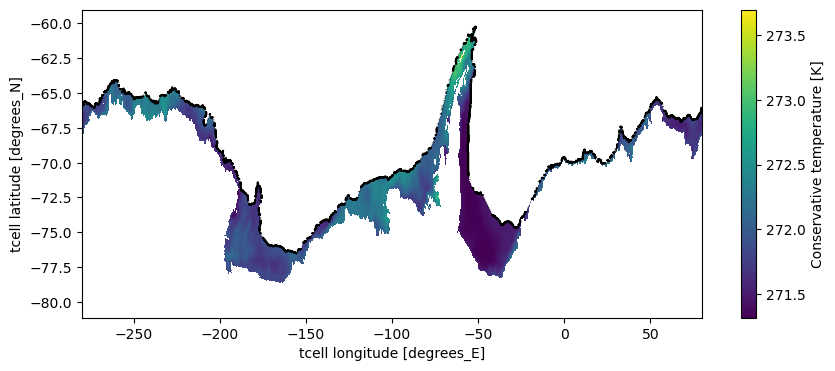

../_images/03-Advanced-Recipes_Create_contour_57_0.png

Approach 2

Custom method for selecting and tracing a specific depth contour.

Load data from the OM3-25km beta release.

[34]:

datastore_path = "/g/data/ol01/access-om3-output/access-om3-025/MC_25km_jra_ryf-1.0-beta/experiment_datastore.json"

datastore = intake.open_esm_datastore(
    datastore_path,
    columns_with_iterables=[
        "variable",
        "variable_long_name",
        "variable_standard_name",
        "variable_cell_methods",
        "variable_units"
    ]
)

[35]:

# Load bathymetry
var_search = datastore.search(variable="deptho")
ds     = var_search.search(path=var_search.df.path[0]).to_dask() # we only need one file as bathymetry doesn't change
deptho = ds["deptho"].sel(yh=slice(-82,-55)).load() # select lat_range and load data

Select desired contour value

[36]:

contour_depth = 1000

Plot the contour, note there are actually a bunch of locations near the prime meridian where the 1000 m contour is not continuous. We will add cells manually next to land below.

[37]:

fig = plt.figure(figsize=(10, 4))

deptho.plot(extend='both', cbar_kwargs={'label': "ocean depth [m]"})
deptho.plot.contour(levels=[contour_depth], colors='r', linestyles='-')
plt.title('Ocean depth (m)');
plt.xlim(-30, 30), plt.ylim(-78,-65);

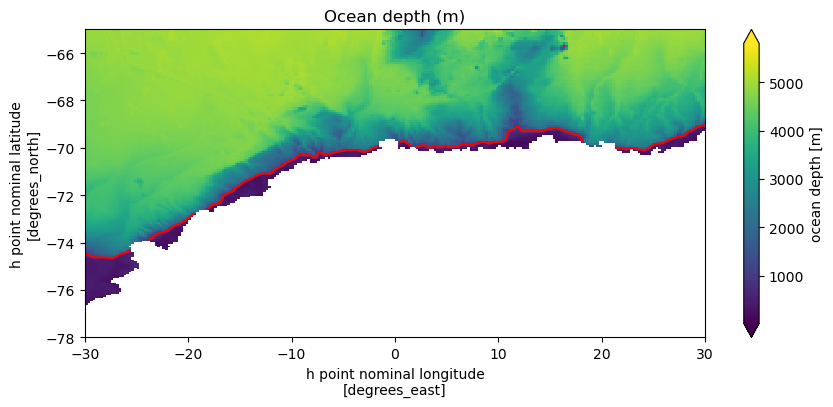

../_images/03-Advanced-Recipes_Create_contour_65_0.png

Create a binary mask

[38]:

# Temporary mask with 0 bathymetry is deeper than the contour depth and 1 elsewhere
tmp_mask = np.copy(deptho)
tmp_mask[np.where(deptho>contour_depth)]  = 0 # locations where the bathymetry is deeper than contour_depth
tmp_mask[np.where(deptho<=contour_depth)] = 1 # locations where the bathymetry is shallower or equal to contour_depth

Spread the isobath contour so all points are connected adjacently (not just diagonally).

[39]:

# Spread the 1s in tmp_mask to their neighboring pixels (using a 3x3 kernel).
# This ensures that the contour is connected horizontally and vertically, not just diagonally.
kernel = np.ones((3,3),np.uint8)

# isolate the edges of the contour -> only the pixels at the boundary of the contour are marked with 1
contour_mask0 = cv2.dilate(tmp_mask,kernel,iterations=1) - tmp_mask

Select a starting point for tracing the contour along the western edge of the domain.

[40]:

# start at western edge of domain, at y point closest to correct depth contour:
contour_mask = np.zeros_like(deptho)

# pick most northerly contour:
contour_lat_index_start = np.where(contour_mask0[:,0]>0)[0][-1]
# pick most southerly contour:
# contour_lat_index_start = np.where(contour_mask0[:,0]>0)[0][0]

# starting point is marked with 1 in contour_mask, which can then be used as a seed for further contour tracing or region-growing algorithms
contour_mask[contour_lat_index_start,0] = 1

Plot to make sure contour_lat_index_start (yellow dot) is on the correct contour.

[41]:

plt.figure(1,figsize=(16,8))
plt.pcolormesh(deptho)
plt.contour(deptho,[contour_depth],colors='r')
plt.xlim((-1,10))
plt.ylim((100,250))
plt.plot(0,contour_lat_index_start,'yo',markersize=10)

[41]:

[<matplotlib.lines.Line2D at 0x154f7bb714f0>]

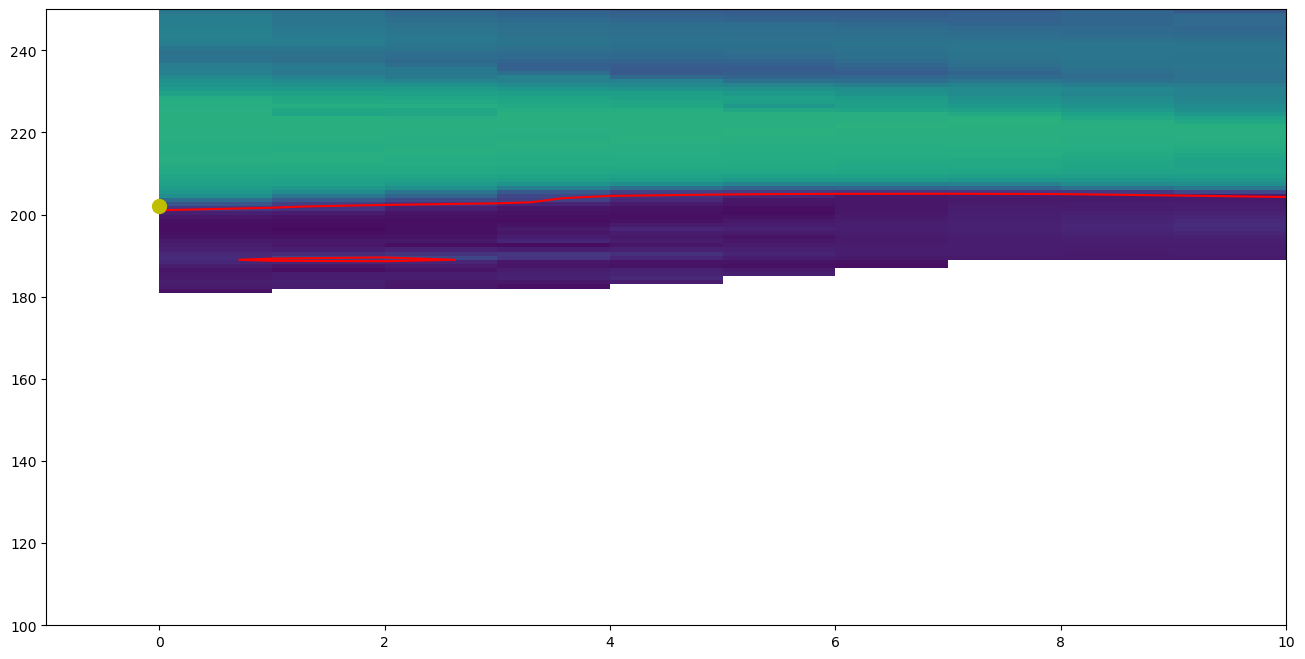

../_images/03-Advanced-Recipes_Create_contour_73_1.png

Manually change a few grid cells (ensure continuous contour and no loops) - this is specific to the grid and the contour selected!

Set cells to 0 to remove them from the contour and set to 1 to add cells to contour.

This is laborious, see next cell to find out which grid cells need to be changed for the OM3-25km example.

[42]:

# Below is true for the OM3-25km grid with contour_depth = 1000
contour_mask0[230,868] = 0
contour_mask0[247:254,914:921] = 0
contour_mask0[253,913] = 0
contour_mask0[249,909] = 0
contour_mask0[245:249,908] = 0
contour_mask0[244:249,916] = 0
contour_mask0[225:230,914] = 0
contour_mask0[102,1017] = 0
contour_mask0[102:106,1016] = 1
contour_mask0[105:107,1017] = 1
contour_mask0[106:108,1018] = 1
contour_mask0[107:109,1019] = 1
contour_mask0[108,1019:1023] = 1
contour_mask0[125,1042:1044] = 1
contour_mask0[126,1043:1046] = 1

contour_mask0[161:163,1113] = 1
contour_mask0[162,1113:1115] = 1
contour_mask0[162:165,1115] = 1
contour_mask0[164,1115:1120] = 1
contour_mask0[162:165,1120] = 1
contour_mask0[162,1121] = 1
contour_mask0[160,1127] = 1
contour_mask0[159,1128] = 0

contour_mask0[160:163,1194] = 1
contour_mask0[160,1194:1199] = 1
contour_mask0[160:163,1199] = 1
contour_mask0[162,1199:1207] = 1
contour_mask0[160:163,1206] = 1

contour_mask0[123:125,401] = 0

Plot contour_mask0 to check which cells need to be changed.

[43]:

# Check how contour_mask0 looks like
# - is the contour continuous around Antarctica?
# - are there loops that would not contribute to any cross-slope transport anyway?
# Change the xlim, ylim to zoom into different regions

plt.figure(1,figsize=(16,8))
plt.pcolormesh(contour_mask0)
plt.colorbar()
plt.clim((0,2))
plt.scatter(401,123, c='r') # adjust to select grid cells that need to be changed
plt.xlim((370,420))
plt.ylim((50,160));

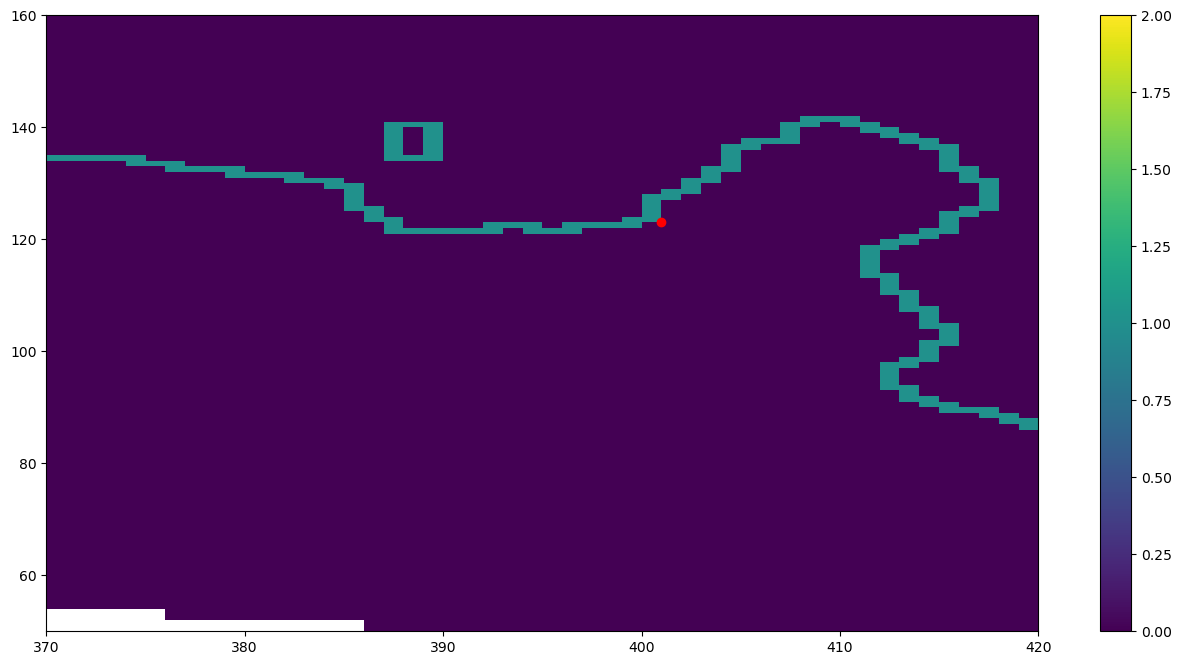

../_images/03-Advanced-Recipes_Create_contour_77_0.png

Select out only the contour we want: We can now finally trace the connected contour from our starting point to the right edge of the grid, marking each point along the contour with a unique label (count). The algorithm checks the 4-connected neighbours (east, west, south, north) of the current point and checks each neighbour to see if it is (i) within the grid bounds and (ii) part of the contour and unvisited. The first valid neighbour found is selected as the next point (new_loc). If no valid neighbours are found, the contour has reached a dead end, and the loop terminates - if this happens before we reach the eastern boundary we need to go back and amend contour_mask0.

[44]:

# set up indices
last_index_i = 0
last_index_j = contour_lat_index_start
count = 1  # start labeling from 1

# mark starting point
contour_mask[last_index_j, last_index_i] = count
contour_mask0[last_index_j, last_index_i] = 0  # mark as visited

# loop until the right edge or dead end
while last_index_i < deptho.shape[1]-1:

    # define neighbours
    if last_index_i == 0:
        # first step: don't go backwards
        neighbours = [
            (last_index_j, last_index_i+1),   # east
            (last_index_j+1, last_index_i),   # south
            (last_index_j-1, last_index_i)    # north
        ]
    else:
        # after first step: include west
        neighbours = [
            (last_index_j, last_index_i+1),   # east
            (last_index_j, last_index_i-1),   # west
            (last_index_j+1, last_index_i),   # south
            (last_index_j-1, last_index_i)    # north
        ]

    # find valid neighbours
    new_loc = None
    for nj, ni in neighbours:
        if 0 <= nj < contour_mask0.shape[0] and 0 <= ni < contour_mask0.shape[1]:
            if contour_mask0[nj, ni] == 1:  # unvisited contour
                new_loc = (nj, ni)
                break

    if new_loc is None:
        # dead end → stop
        print("Dead end reached at step", count)
        break
    else:
        # move to next point
        last_index_j, last_index_i = new_loc
        count += 1
        contour_mask[last_index_j, last_index_i] = count
        contour_mask0[last_index_j, last_index_i] = 0  # mark visited

We can now check what contour_mask looks like - is it continuous around Antarctica? Are there still any loops or duplicate cells that are not needed?

[45]:

plt.figure(1,figsize=(16,8))
plt.pcolormesh(deptho.xh,deptho.yh,contour_mask)
plt.colorbar()
plt.clim((0,1000))
plt.xlim((5,80))      # adjust xlim and ylim to zoom in and tracer the contour
plt.ylim((-71,-64));

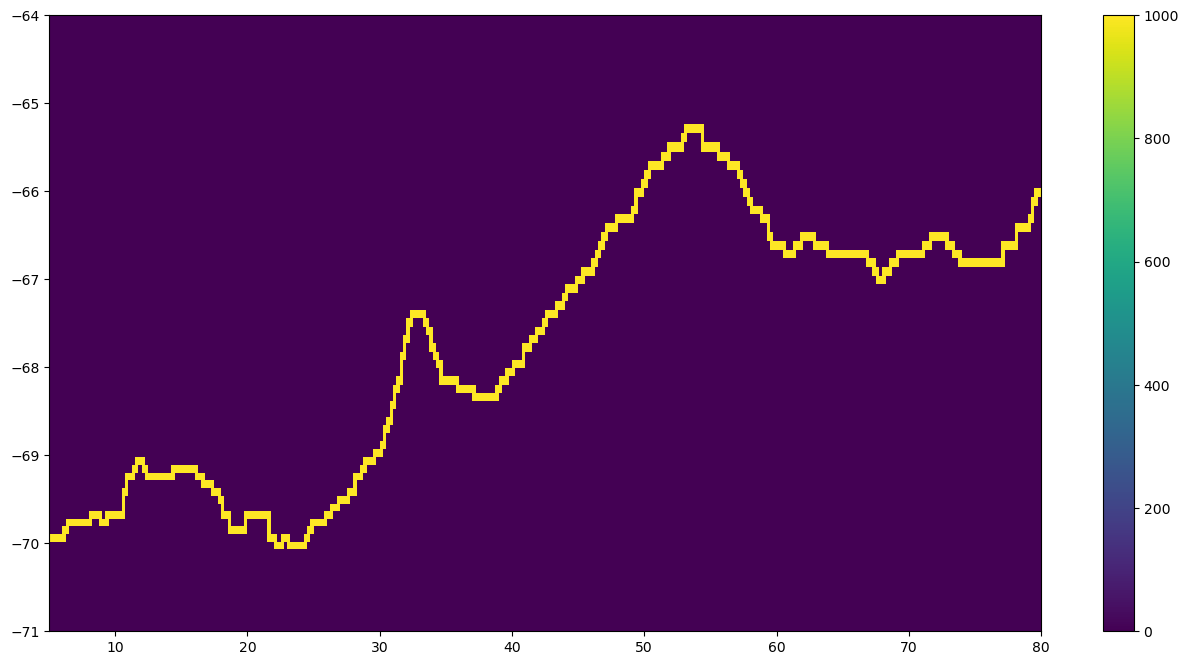

../_images/03-Advanced-Recipes_Create_contour_81_0.png

Looking good! We can now proceed as for approach 1 and…

Create mask to separate points above (offshelf) from points below (onshelf) contour

[46]:

contour_mask_numbered = contour_mask

# fill in points to north of contour:
contour_masked_above = np.copy(contour_mask_numbered)
contour_masked_above[-1,0] = -100

# from top left:
for ii in range(len(deptho.xh)-1):
    for jj in range(len(deptho.yh))[::-1][:-1]:
        if contour_masked_above[jj,ii] == -100:
            if contour_masked_above[jj-1,ii] == 0:
                contour_masked_above[jj-1,ii] = -100
            if contour_masked_above[jj,ii+1] == 0:
                contour_masked_above[jj,ii+1] = -100
            if contour_masked_above[jj-1,ii+1] == 0:
                contour_masked_above[jj-1,ii+1] = -100
# from top right:
for ii in range(len(deptho.xh))[::-1][:-1]:
    for jj in range(len(deptho.yh))[::-1][:-1]:
        if contour_masked_above[jj,ii] == -100:
            if contour_masked_above[jj-1,ii] == 0:
                contour_masked_above[jj-1,ii] = -100
            if contour_masked_above[jj,ii-1] == 0:
                contour_masked_above[jj,ii-1] = -100
            if contour_masked_above[jj-1,ii-1] == 0:
                contour_masked_above[jj-1,ii-1] = -100
# from bottom right:
for ii in range(len(deptho.xh))[::-1][:-1]:
    for jj in range(len(deptho.yh)-1):
        if contour_masked_above[jj,ii] == -100:
            if contour_masked_above[jj+1,ii] == 0:
                contour_masked_above[jj+1,ii] = -100
            if contour_masked_above[jj,ii-1] == 0:
                contour_masked_above[jj,ii-1] = -100
            if contour_masked_above[jj+1,ii-1] == 0:
                contour_masked_above[jj+1,ii-1] = -100
# from bottom left:
for ii in range(len(deptho.xh)-1):
    for jj in range(len(deptho.yh)-1):
        if contour_masked_above[jj,ii] == -100:
            if contour_masked_above[jj+1,ii] == 0:
                contour_masked_above[jj+1,ii] = -100
            if contour_masked_above[jj,ii+1] == 0:
                contour_masked_above[jj,ii+1] = -100
            if contour_masked_above[jj+1,ii+1] == 0:
                contour_masked_above[jj+1,ii+1] = -100

Create masks for x and y transport calculations (i.e. determine if positive u and v will be into or out of contour)

[47]:

# separate out points on isobath that will correspond to zonal or meridional transport
# across contour (i.e. depending on localshape of contour):

# make masks to multiply x and y transports at correct places:
mask_x_transport = np.zeros_like(contour_mask_numbered)
mask_y_transport = np.zeros_like(contour_mask_numbered)
mask_y_transport_numbered = np.zeros_like(contour_mask_numbered)
mask_x_transport_numbered = np.zeros_like(contour_mask_numbered)
# make halos:
contour_masked_above_halo = np.zeros((contour_masked_above.shape[0],
    contour_masked_above.shape[1]+2))
contour_masked_above_halo[:,0] = contour_masked_above[:,-1]
contour_masked_above_halo[:,1:-1] = contour_masked_above
contour_masked_above_halo[:,-1] = contour_masked_above[:,0]

new_number_count = 1
for mask_loc in range(1,int(np.max(contour_mask_numbered))+1):
    #if mask_loc%100 == 0:
    #    print('mask for x/y transport at point '+str(mask_loc))
    index_i = np.where(contour_mask_numbered==mask_loc)[1]
    index_j = np.where(contour_mask_numbered==mask_loc)[0]
    # if point above is towards Antarctica and point below is away from Antarctica:
    # take transport grid point to north of t grid:
    if (contour_masked_above[index_j+1,index_i]==0) and (contour_masked_above[index_j-1,index_i]!=0):
        mask_y_transport[index_j,index_i] = -1
        # important to do
        mask_y_transport_numbered[index_j,index_i] = new_number_count
        new_number_count += 1
    # if point below is towards Antarctica and point above is away from Antarctica:
    # take transport grid point to south of t grid:
    elif (contour_masked_above[index_j-1,index_i]==0) and (contour_masked_above[index_j+1,index_i]!=0):
        mask_y_transport[index_j-1,index_i] = 1
        mask_y_transport_numbered[index_j-1,index_i] = new_number_count
        new_number_count += 1
    # if point to right is towards Antarctica and point to left is away from Antarctica:
    # zonal indices increased by 1 due to halos
    # take transport grid point on right of t grid:
    if (contour_masked_above_halo[index_j,index_i+2]==0) and (contour_masked_above_halo[index_j,index_i]!=0):
        mask_x_transport[index_j,index_i] = -1
        mask_x_transport_numbered[index_j,index_i] = new_number_count
        new_number_count += 1
    # if point to left is towards Antarctica and point to right is away from Antarctica:
    # take transport grid point on left of t grid:
    elif (contour_masked_above_halo[index_j,index_i]==0) and (contour_masked_above_halo[index_j,index_i+2]!=0):
        mask_x_transport[index_j,index_i-1] = 1
        mask_x_transport_numbered[index_j,index_i-1] = new_number_count
        new_number_count += 1

Write as dataset

[48]:

# Load umo and vmo to get correct coordinate information (info might also be in some grid file?)
umo = datastore.search(variable='umo').to_dask().umo.sel(yh=slice(-82,-55))
vmo = datastore.search(variable='vmo').to_dask().vmo.sel(yq=slice(-82,-54.9))

[49]:

# Create dataset
ds_approach2 = xr.Dataset(
    {
        "mask_x_transport": (("yh", "xq"), mask_x_transport),
        "mask_y_transport": (("yq", "xh"), mask_y_transport),
        "mask_x_transport_numbered": (("yh", "xq"), mask_x_transport_numbered),
        "mask_y_transport_numbered": (("yq", "xh"), mask_y_transport_numbered),
        "contour_masked_above": (("yh", "xh"), contour_masked_above),
        "contour_mask_numbered": (("yh", "xh"), contour_mask_numbered),
    },
    coords={
        "xh": deptho.xh,
        "yh": deptho.yh,
        "xq": umo.xq,
        "yq": vmo.yq,
    },
)

And plot just to confirm that we didn’t mess up anything.

[51]:

plt.figure(1, figsize=(10, 4))

ds_approach2.mask_x_transport.plot(cmap=cmocean.cm.balance, vmin=-1.5, vmax=1.5);
../_images/03-Advanced-Recipes_Create_contour_90_0.png
