Model Agnostic Analysis¶

Introduction¶

Model agnostic analysis means writing your notebook so that it can easily be used with any CF-compliant data source.

What are the CF Conventions?¶

The CF metadata conventions are designed to promote the processing and sharing of files created with the NetCDF API. The conventions define metadata that provide a definitive description of what the data in each variable represents, and the spatial and temporal properties of the data. This enables users of data from different sources to decide which quantities are comparable, and facilitates building applications with powerful extraction, regridding, and display capabilities. The CF convention includes a standard name table, which defines strings that identify physical quantities.

In most cases the model output data accessed through the ACCESS-NRI Intake Catalog complies with some version of the CF conventions; enough to be usable for model agnostic analysis.

Why bother?¶

Model agnostic means the same code can work for multiple models. This makes your code more usable by you and by others. You no longer need to have different versions of code for different models. It makes you and any one who uses your code more productive. It allows for common tasks to be abstracted into general methods that can be more easily reused, meaning less code needs to be written and maintained. This is an enormous productivity boost.

How is model agnostic analysis achieved?¶

This can be achieved by using packages that enable this:

cf_xarray for generalised coordinate naming
xgcm to make grid operations generic across data
pint and pint-xarray for handling units easily and robustly

Example¶

Introduction¶

This tutorial uses an example analysis, shows how the this might be done in a traditional, model specific, manner, and then implements the same analysis in a model agnostic way.

This tutorial is intended to be run using the conda/analysis3 or conda/access-med environment, available via the xp65 project: https://access-nri-intake-catalog.readthedocs.io/en/latest/usage/how.html#using-the-catalog-on-the-are

The first step is to import necessary packages.

[1]:

import intake

import numpy as np
import xarray as xr
import cf_xarray as cfxr
import pint_xarray

from pint import application_registry as ureg
import cf_xarray.units
import matplotlib.pyplot as plt
import cmocean as cm
import cartopy.crs as ccrs
import cartopy.feature as cft

[2]:

from dask.distributed import Client
client = Client(threads_per_worker=1)
client

[2]:

Client

Client-0c70da2d-52f7-11f0-9c9d-00000395fe80

Connection method: Cluster object	Cluster type: distributed.LocalCluster
Dashboard: /proxy/8787/status

Cluster Info

LocalCluster

77e8a985

Dashboard: /proxy/8787/status	Workers: 14
Total threads: 14	Total memory: 63.00 GiB
Status: running	Using processes: True

Scheduler Info

Scheduler

Scheduler-8c3e5a06-d867-4f42-a75a-a43ce526fa5c

Comm: tcp://127.0.0.1:35881	Workers: 0
Dashboard: /proxy/8787/status	Total threads: 0
Started: Just now	Total memory: 0 B

Workers

Worker: 0

Comm: tcp://127.0.0.1:46123	Total threads: 1
Dashboard: /proxy/36765/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:35213
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-uggsb74w

Worker: 1

Comm: tcp://127.0.0.1:46543	Total threads: 1
Dashboard: /proxy/34241/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:41065
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-se0d2d53

Worker: 2

Comm: tcp://127.0.0.1:36231	Total threads: 1
Dashboard: /proxy/40805/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:43637
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-l3oags2n

Worker: 3

Comm: tcp://127.0.0.1:37323	Total threads: 1
Dashboard: /proxy/32941/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:36269
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-biqo6d2r

Worker: 4

Comm: tcp://127.0.0.1:37607	Total threads: 1
Dashboard: /proxy/43491/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:39297
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-fp82cmtc

Worker: 5

Comm: tcp://127.0.0.1:42559	Total threads: 1
Dashboard: /proxy/42343/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:36693
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-l__eapav

Worker: 6

Comm: tcp://127.0.0.1:34123	Total threads: 1
Dashboard: /proxy/33051/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:36275
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-cxvtixw5

Worker: 7

Comm: tcp://127.0.0.1:44179	Total threads: 1
Dashboard: /proxy/39331/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:37111
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-mx0nox70

Worker: 8

Comm: tcp://127.0.0.1:37539	Total threads: 1
Dashboard: /proxy/37951/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:41951
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-7mh7z8br

Worker: 9

Comm: tcp://127.0.0.1:46819	Total threads: 1
Dashboard: /proxy/35809/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:33215
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-yl2h9wna

Worker: 10

Comm: tcp://127.0.0.1:36703	Total threads: 1
Dashboard: /proxy/42507/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:43025
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-5r7ln_bn

Worker: 11

Comm: tcp://127.0.0.1:43375	Total threads: 1
Dashboard: /proxy/35405/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:45413
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-4pkx2s4d

Worker: 12

Comm: tcp://127.0.0.1:38131	Total threads: 1
Dashboard: /proxy/34111/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:45563
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-fbs46wfo

Worker: 13

Comm: tcp://127.0.0.1:33747	Total threads: 1
Dashboard: /proxy/39141/status	Memory: 4.50 GiB
Nanny: tcp://127.0.0.1:38761
Local directory: /jobfs/144171292.gadi-pbs/dask-scratch-space/worker-ufycrjks

cf_xarray works best when xarray keeps attributes by default:

[3]:

xr.set_options(keep_attrs=True)

[3]:

<xarray.core.options.set_options at 0x154ce6075fd0>

Load the ACCESS-NRI Intake Catalog:

[4]:

catalog = intake.cat.access_nri

Then, select one experiment from the catalog and load surface temperature data from a 0.25\(^\circ\) global MOM5 model.

[5]:

experiment = '025deg_jra55_iaf_omip2_cycle6'
cat_subset = catalog[experiment]

variable = 'sst'
var_search = cat_subset.search(variable=variable, frequency='1mon')
ds = var_search.to_dask(xarray_open_kwargs={
    # This option suppresses a warning due to an upcoming default alteration in xarray
    "decode_timedelta": False,
})
SST = ds[variable]

This is a 3D dataset in latitude, longitude and time:

[6]:

SST

[6]:

<xarray.DataArray 'sst' (time: 732, yt_ocean: 1080, xt_ocean: 1440)> Size: 5GB
dask.array<concatenate, shape=(732, 1080, 1440), dtype=float32, chunksize=(1, 216, 240), chunktype=numpy.ndarray>
Coordinates:
  * xt_ocean  (xt_ocean) float64 12kB -279.9 -279.6 -279.4 ... 79.38 79.62 79.88
  * yt_ocean  (yt_ocean) float64 9kB -81.08 -80.97 -80.87 ... 89.74 89.84 89.95
  * time      (time) datetime64[ns] 6kB 1958-01-14T12:00:00 ... 2018-12-14T12...
Attributes:
    long_name:      Potential temperature
    units:          K
    valid_range:    [-10. 500.]
    cell_methods:   time: mean
    time_avg_info:  average_T1,average_T2,average_DT
    standard_name:  sea_surface_temperature

Model specific¶

First, do our analysis as it might usually be done, in a model-specific manner:

Convert the temperature units from kelvin (K) to Celsius (C);
Use the time coordinate name in the mean function.

We use pint to ensure this is in degrees C. Note that if the data were originally in degrees Celcius, this would do nothing. This is a way of catering for any temperature units that are understood by pint in a transparent way. Note the call to quantify, which invokes pint’s machinery to parse the units and allow unit conversions.

[7]:

SST.attrs['units'] = 'K'
SST = SST.pint.quantify().pint.to('C')
SST_time_mean = SST.mean('time')
SST_time_mean

[7]:

<xarray.DataArray 'sst' (yt_ocean: 1080, xt_ocean: 1440)> Size: 6MB
<Quantity(dask.array<mean_agg-aggregate, shape=(1080, 1440), dtype=float32, chunksize=(216, 240), chunktype=numpy.ndarray>, 'degree_Celsius')>
Coordinates:
  * xt_ocean  (xt_ocean) float64 12kB -279.9 -279.6 -279.4 ... 79.38 79.62 79.88
  * yt_ocean  (yt_ocean) float64 9kB -81.08 -80.97 -80.87 ... 89.74 89.84 89.95
Attributes:
    long_name:      Potential temperature
    valid_range:    [-10. 500.]
    cell_methods:   time: mean
    time_avg_info:  average_T1,average_T2,average_DT
    standard_name:  sea_surface_temperature

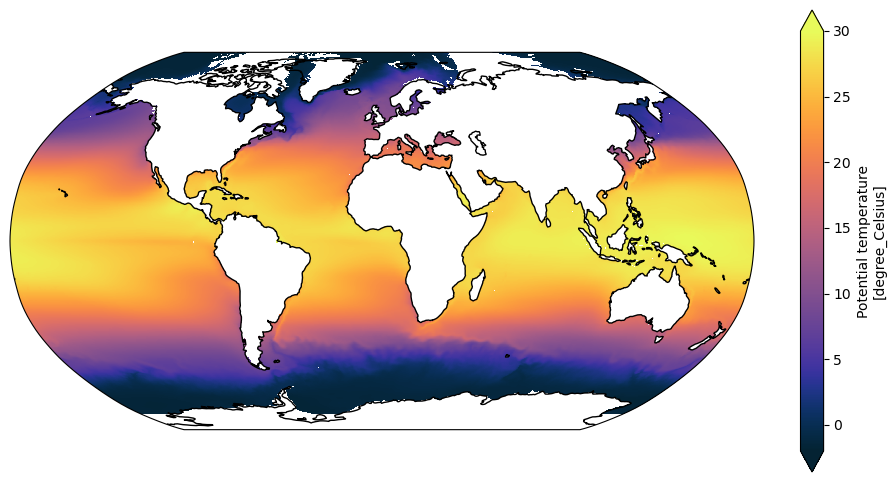

Now, plot the result:

[9]:

plt.figure(figsize=(12, 6))
ax = plt.axes(projection=ccrs.Robinson())

SST_time_mean = SST_time_mean.pint.dequantify()
SST_time_mean.plot(ax=ax,
                   x='xt_ocean', y='yt_ocean',
                   transform=ccrs.PlateCarree(),
                   vmin=-2, vmax=30, extend='both',
                   cmap=cm.cm.thermal)

ax.coastlines()

[9]:

<cartopy.mpl.feature_artist.FeatureArtist at 0x154c8ba45810>

(Note that the Arctic is not correctly respresented due to the 1D lat/lon coordinates not being correct in the tripole area. See the Making Maps with cartopy Tutorial for more information.)

Model agnostic¶

Now, do the same calculation, but in a model agnostic manner.

We can use the cf accessor to automatically determine the name of the time dimension without knowledge of the exact model being used. cf_xarray checks the names of variables and coordinates, and associated metadata, to try and infer information about the data based on the CF conventions.

To see what cf_xarray information is available just evaluate the accessor:

[10]:

SST.cf

[10]:

Coordinates:
             CF Axes: * X: ['xt_ocean']
                      * Y: ['yt_ocean']
                      * T: ['time']
                        Z: n/a

      CF Coordinates: * longitude: ['xt_ocean']
                      * latitude: ['yt_ocean']
                      * time: ['time']
                        vertical: n/a

       Cell Measures:   area, volume: n/a

      Standard Names:   n/a

              Bounds:   n/a

       Grid Mappings:   n/a

In this case it has found X, Y and T axes, and longitude, latitude and time coordinates. These are now accessible like a dict using the cf accessor. Note that this returns the actual coordinate, and many functions just want a simple string argument, which is the name of the coordinate.

cf_xarray also wraps many standard xarray functions, allowing cf names to be used, which are automatically converted to the name in the data.

The upshot: just use the cf accessor, append the required function, and use the standard CF coordinate name (in this case they are the same, time, but that is not guaranteed):

[11]:

SST_time_mean = SST.cf.mean('time')
SST_time_mean

[11]:

<xarray.DataArray 'sst' (yt_ocean: 1080, xt_ocean: 1440)> Size: 6MB
<Quantity(dask.array<mean_agg-aggregate, shape=(1080, 1440), dtype=float32, chunksize=(216, 240), chunktype=numpy.ndarray>, 'degree_Celsius')>
Coordinates:
  * xt_ocean  (xt_ocean) float64 12kB -279.9 -279.6 -279.4 ... 79.38 79.62 79.88
  * yt_ocean  (yt_ocean) float64 9kB -81.08 -80.97 -80.87 ... 89.74 89.84 89.95
Attributes:
    long_name:      Potential temperature
    valid_range:    [-10. 500.]
    cell_methods:   time: mean
    time_avg_info:  average_T1,average_T2,average_DT
    standard_name:  sea_surface_temperature

Using the cf_xarray-wrapped function makes the code more legible and easier to write, i.e.

SST.cf.mean('time')

compared to

SST.mean(SST.cf['time'].name)

The cf accessor can be used in the same way in the plot, with the CF names for latitude and longitude used as x and y arguments:

[12]:

plt.figure(figsize=(12, 6))
ax = plt.axes(projection=ccrs.Robinson())

SST_time_mean = SST_time_mean.pint.dequantify()
SST_time_mean.cf.plot(ax=ax,
                      x='longitude', y='latitude',
                      transform=ccrs.PlateCarree(),
                      vmin=-2, vmax=30, extend='both',
                      cmap=cm.cm.thermal)

ax.coastlines()

[12]:

<cartopy.mpl.feature_artist.FeatureArtist at 0x154c83ee9c10>

../../_images/01-Cooking-Tutorials_02-Advanced_Model_Agnostic_Analysis_29_1.png

Putting this into practice¶

Above a model agnostic version of some code was demonstrated, but that doesn’t utilise the full power of what it is capable of. The model agnostic code can now be easily turned into a function that accepts an xarray DataArray:

[15]:

def map_mean_temp_in_degrees_celsius(da):
    # Take the time mean of da and plot a global temperature field in a Robinson projection
    #
    # Input DataArray (da) should be a 3D array of latitude, longitude and time.

    da = da.pint.quantify().pint.to('C')
    da_time_mean = da.cf.mean('time')

    plt.figure(figsize=(12, 6))
    ax = plt.axes(projection=ccrs.Robinson())

    da_time_mean = da_time_mean.pint.dequantify()
    da_time_mean.cf.plot(ax=ax,
                         x='longitude', y='latitude',
                         transform=ccrs.PlateCarree(),
                         vmin=-2, vmax=30, extend='both',
                         cmap=cm.cm.thermal)

    ax.coastlines()

Try this out with the SST data used above:

[16]:

map_mean_temp_in_degrees_celsius(SST)

../../_images/01-Cooking-Tutorials_02-Advanced_Model_Agnostic_Analysis_34_0.png

Now try on the output from a different experiment and model (MOM6):

[17]:

experiment = 'OM4_025.JRA_RYF'
variable = 'tos'
cat_subset = catalog[experiment]
var_search = cat_subset.search(variable=variable, frequency='1mon')
ds = var_search.to_dask(xarray_open_kwargs={"decode_timedelta": False})
SST_mom6 = ds[variable]

Check to see it has correctly parsed the CF information. It is not necessary to print this out, but interesting, and note it has quite different index and coordinate names

[18]:

SST_mom6.cf

[18]:

Coordinates:
             CF Axes: * X: ['xh']
                      * Y: ['yh']
                      * T: ['time']
                        Z: n/a

      CF Coordinates: * longitude: ['xh']
                      * latitude: ['yh']
                      * time: ['time']
                        vertical: n/a

       Cell Measures:   area, volume: n/a

      Standard Names:   n/a

              Bounds:   n/a

       Grid Mappings:   n/a

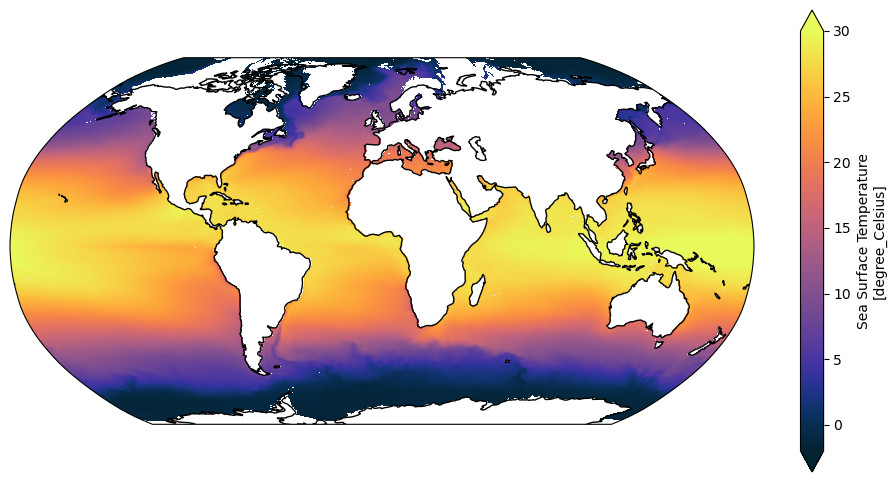

Use the function from above which also worked on MOM5 data with very different coordinates

[19]:

map_mean_temp_in_degrees_celsius(SST_mom6)

../../_images/01-Cooking-Tutorials_02-Advanced_Model_Agnostic_Analysis_40_0.png

What to do when it goes wrong¶

The model agnostic function worked flawlessly with two different ocean data sets, after the units were corrected in the MOM5 data. What about some ice data?

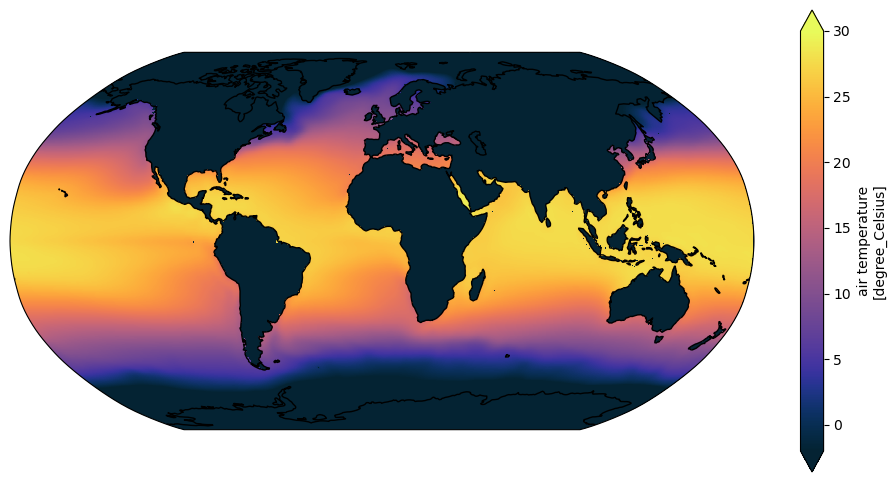

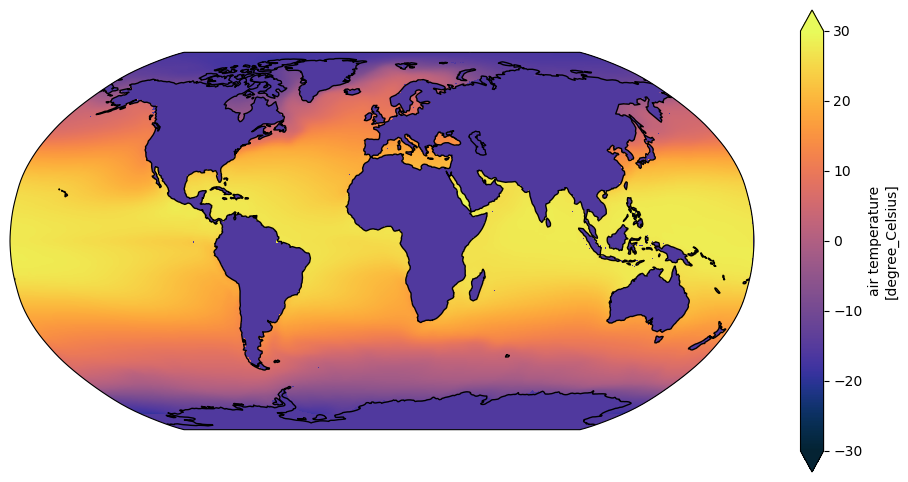

Using the same experiment from which the first SST data was obtained, load the ice air temperature variable:

[20]:

catalog.search(name=".*025deg", realm="seaIce", variable="Tair_m")

Intake dataframe catalog with 11 source(s) across 11 rows:

	model	description	realm	frequency	variable
name
025deg_era5_iaf	{ACCESS-OM2}	{0.25 degree ACCESS-OM2 global model configuration with ERA5 interannual\nforcing (1980-2021)}	{seaIce}	{1mon}	{Tair_m}
025deg_era5_ryf	{ACCESS-OM2}	{0.25 degree ACCESS-OM2 global model configuration with ERA5 RYF9091 repeat\nyear forcing (May 1990 to Apr 1991)}	{seaIce}	{1mon}	{Tair_m}
025deg_jra55_iaf_era5comparison	{ACCESS-OM2}	{0.25 degree ACCESS-OM2 global model configuration with JRA55-do v1.5.0\ninterannual forcing (1980-2019)}	{seaIce}	{1mon}	{Tair_m}
025deg_jra55_iaf_omip2_cycle1	{ACCESS-OM2}	{Cycle 1/6 of 0.25 degree ACCESS-OM2 physics-only global configuration with JRA55-do v1.4 OMIP2 interannual forcing (1958-2019)}	{seaIce}	{1mon}	{Tair_m}
025deg_jra55_iaf_omip2_cycle2	{ACCESS-OM2}	{Cycle 1/6 of 0.25 degree ACCESS-OM2 physics-only global configuration with JRA55-do v1.4 OMIP2 interannual forcing (1958-2019)}	{seaIce}	{1mon}	{Tair_m}
025deg_jra55_iaf_omip2_cycle3	{ACCESS-OM2}	{Cycle 3/6 of 0.25 degree ACCESS-OM2 physics-only global configuration with JRA55-do v1.4 OMIP2 interannual forcing (1958-2019)}	{seaIce}	{1mon}	{Tair_m}
025deg_jra55_iaf_omip2_cycle4	{ACCESS-OM2}	{Cycle 4/6 of 0.25 degree ACCESS-OM2 physics-only global configuration with JRA55-do v1.4 OMIP2 interannual forcing (1958-2019)}	{seaIce}	{1mon}	{Tair_m}
025deg_jra55_iaf_omip2_cycle5	{ACCESS-OM2}	{Cycle 5/6 of 0.25 degree ACCESS-OM2 physics-only global configuration with JRA55-do v1.4 OMIP2 interannual forcing (1958-2019)}	{seaIce}	{1mon}	{Tair_m}
025deg_jra55_iaf_omip2_cycle6	{ACCESS-OM2}	{Cycle 6/6 of 0.25 degree ACCESS-OM2 physics-only global configuration with JRA55-do v1.4 OMIP2 interannual forcing (1958-2019)}	{seaIce}	{1mon}	{Tair_m}
025deg_jra55_ryf9091_gadi	{ACCESS-OM2}	{0.25 degree ACCESS-OM2 physics-only global configuration with JRA55-do v1.3 RYF9091 repeat year forcing (May 1990 to Apr 1991)}	{seaIce}	{1mon}	{Tair_m}
025deg_jra55_ryf_era5comparison	{ACCESS-OM2}	{0.25 degree ACCESS-OM2 global model configuration with JRA55-do v1.4.0\nRYF9091 repeat year forcing (May 1990 to Apr 1991)}	{seaIce}	{1mon}	{Tair_m}

[21]:

experiment = "025deg_jra55_iaf_omip2_cycle6"
variable = 'Tair_m'
cat_subset = catalog[experiment]
var_search = cat_subset.search(variable=variable, frequency='1mon')
ds = var_search.to_dask(
    xarray_open_kwargs={"decode_timedelta": False},
    # xarray_combine_by_coords_kwargs is required to get the
    # data from this experiment loaded in a reasonable timeframe
    xarray_combine_by_coords_kwargs = dict(
    compat="override",
    data_vars="minimal",
    coords="minimal",
),
)
ice_air_temp = ds[variable]
ice_air_temp

[21]:

<xarray.DataArray 'Tair_m' (time: 732, nj: 1080, ni: 1440)> Size: 5GB
dask.array<concatenate, shape=(732, 1080, 1440), dtype=float32, chunksize=(1, 540, 720), chunktype=numpy.ndarray>
Coordinates:
  * time     (time) datetime64[ns] 6kB 1958-02-01 1958-03-01 ... 2019-01-01
    TLON     (nj, ni) float32 6MB dask.array<chunksize=(540, 720), meta=np.ndarray>
    TLAT     (nj, ni) float32 6MB dask.array<chunksize=(540, 720), meta=np.ndarray>
    ULON     (nj, ni) float32 6MB dask.array<chunksize=(540, 720), meta=np.ndarray>
    ULAT     (nj, ni) float32 6MB dask.array<chunksize=(540, 720), meta=np.ndarray>
Dimensions without coordinates: nj, ni
Attributes:
    units:          C
    long_name:      air temperature
    cell_measures:  area: tarea
    cell_methods:   time: mean
    time_rep:       averaged

When we try the generic routine:

[22]:

map_mean_temp_in_degrees_celsius(ice_air_temp)

---------------------------------------------------------------------------
KeyError                                  Traceback (most recent call last)
Cell In[22], line 1
----> 1 map_mean_temp_in_degrees_celsius(ice_air_temp)

Cell In[15], line 13, in map_mean_temp_in_degrees_celsius(da)
     10 ax = plt.axes(projection=ccrs.Robinson())
     12 da_time_mean = da_time_mean.pint.dequantify()
---> 13 da_time_mean.cf.plot(ax=ax,
     14                      x='longitude', y='latitude',
     15                      transform=ccrs.PlateCarree(),
     16                      vmin=-2, vmax=30, extend='both',
     17                      cmap=cm.cm.thermal)
     19 ax.coastlines()

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cf_xarray/accessor.py:1123, in _CFWrappedPlotMethods.__call__(self, *args, **kwargs)
   1114 """
   1115 Allows .plot()
   1116 """
   1117 plot = _getattr(
   1118     obj=self._obj,
   1119     attr="plot",
   1120     accessor=self.accessor,
   1121     key_mappers=dict.fromkeys(self._keys, (_single(_get_all),)),
   1122 )
-> 1123 return self._plot_decorator(plot)(*args, **kwargs)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cf_xarray/accessor.py:1106, in _CFWrappedPlotMethods._plot_decorator.<locals>._plot_wrapper(*args, **kwargs)
   1103     kwargs = self._process_x_or_y(kwargs, "y", skip=kwargs.get("x"))
   1105 # Now set some nice properties
-> 1106 kwargs = self._set_axis_props(kwargs, "x")
   1107 kwargs = self._set_axis_props(kwargs, "y")
   1109 return func(*args, **kwargs)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cf_xarray/accessor.py:1070, in _CFWrappedPlotMethods._set_axis_props(self, kwargs, key)
   1068 if value:
   1069     if value in self.accessor.keys():
-> 1070         var = self.accessor[value]
   1071     else:
   1072         var = self._obj[value]

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cf_xarray/accessor.py:2977, in CFDataArrayAccessor.__getitem__(self, key)
   2972 if not isinstance(key, Hashable):
   2973     raise KeyError(
   2974         f"Cannot use an Iterable of keys with DataArrays. Expected a single string. Received {key!r} instead."
   2975     )
-> 2977 return _getitem(self, key)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cf_xarray/accessor.py:856, in _getitem(accessor, key, skip)
    854 names = _get_all(obj, k)
    855 names = drop_bounds(names)
--> 856 check_results(names, k)
    857 successful[k] = bool(names)
    858 coords.extend(names)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cf_xarray/accessor.py:826, in _getitem.<locals>.check_results(names, key)
    824 def check_results(names, key):
    825     if scalar_key and len(names) > 1:
--> 826         raise KeyError(
    827             f"Receive multiple variables for key {key!r}: {names}. "
    828             f"Expected only one. Please pass a list [{key!r}] "
    829             f"instead to get all variables matching {key!r}."
    830         )

KeyError: "Receive multiple variables for key 'longitude': ['ULON', 'TLON']. Expected only one. Please pass a list ['longitude'] instead to get all variables matching 'longitude'."

../../_images/01-Cooking-Tutorials_02-Advanced_Model_Agnostic_Analysis_46_1.png

The error message is

"Receive multiple variables for key 'longitude': ['TLON', 'ULON']. Expected only one. Please pass a list ['longitude'] instead to get all variables matching 'longitude'."

This suggests that cf_xarray has found multiple longitude coordinates TLON and ULON and doesn’t know how to resolve this automatically.

Inspecting the cf information doesn’t show multiple axes like it does in the documentation:

[23]:

ice_air_temp.cf

[23]:

Coordinates:
             CF Axes:   X, Y, Z, T: n/a

      CF Coordinates:   longitude: ['TLON']
                        latitude: ['TLAT']
                        vertical, time: n/a

       Cell Measures:   area, volume: n/a

      Standard Names:   n/a

              Bounds:   n/a

       Grid Mappings:   n/a

This is a bug, taking the mean alters the coordinates:

[24]:

ice_air_temp.cf.mean('time').cf

[24]:

Coordinates:
             CF Axes:   X, Y, Z, T: n/a

      CF Coordinates:   longitude: ['TLON', 'ULON']
                        latitude: ['TLAT', 'ULAT']
                        vertical, time: n/a

       Cell Measures:   area, volume: n/a

      Standard Names:   n/a

              Bounds:   n/a

       Grid Mappings:   n/a

So the solution is to drop the redundant velocity grid:

[25]:

ice_air_temp = ice_air_temp.drop_vars(['ULON', 'ULAT'])

Now trying to plot again using the generic function and there is another error:

[26]:

map_mean_temp_in_degrees_celsius(ice_air_temp)

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
Cell In[26], line 1
----> 1 map_mean_temp_in_degrees_celsius(ice_air_temp)

Cell In[15], line 13, in map_mean_temp_in_degrees_celsius(da)
     10 ax = plt.axes(projection=ccrs.Robinson())
     12 da_time_mean = da_time_mean.pint.dequantify()
---> 13 da_time_mean.cf.plot(ax=ax,
     14                      x='longitude', y='latitude',
     15                      transform=ccrs.PlateCarree(),
     16                      vmin=-2, vmax=30, extend='both',
     17                      cmap=cm.cm.thermal)
     19 ax.coastlines()

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cf_xarray/accessor.py:1123, in _CFWrappedPlotMethods.__call__(self, *args, **kwargs)
   1114 """
   1115 Allows .plot()
   1116 """
   1117 plot = _getattr(
   1118     obj=self._obj,
   1119     attr="plot",
   1120     accessor=self.accessor,
   1121     key_mappers=dict.fromkeys(self._keys, (_single(_get_all),)),
   1122 )
-> 1123 return self._plot_decorator(plot)(*args, **kwargs)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cf_xarray/accessor.py:1109, in _CFWrappedPlotMethods._plot_decorator.<locals>._plot_wrapper(*args, **kwargs)
   1106 kwargs = self._set_axis_props(kwargs, "x")
   1107 kwargs = self._set_axis_props(kwargs, "y")
-> 1109 return func(*args, **kwargs)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cf_xarray/accessor.py:753, in _getattr.<locals>.wrapper(*args, **kwargs)
    749 posargs, arguments = accessor._process_signature(
    750     func, args, kwargs, key_mappers
    751 )
    752 final_func = extra_decorator(func) if extra_decorator else func
--> 753 result = final_func(*posargs, **arguments)
    754 if wrap_classes and isinstance(result, _WRAPPED_CLASSES):
    755     result = _CFWrappedClass(result, accessor)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/xarray/plot/accessor.py:48, in DataArrayPlotAccessor.__call__(self, **kwargs)
     46 @functools.wraps(dataarray_plot.plot, assigned=("__doc__", "__annotations__"))
     47 def __call__(self, **kwargs) -> Any:
---> 48     return dataarray_plot.plot(self._da, **kwargs)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/xarray/plot/dataarray_plot.py:310, in plot(darray, row, col, col_wrap, ax, hue, subplot_kws, **kwargs)
    306     plotfunc = hist
    308 kwargs["ax"] = ax
--> 310 return plotfunc(darray, **kwargs)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/xarray/plot/dataarray_plot.py:1606, in _plot2d.<locals>.newplotfunc(***failed resolving arguments***)
   1602     raise ValueError("plt.imshow's `aspect` kwarg is not available in xarray")
   1604 ax = get_axis(figsize, size, aspect, ax, **subplot_kws)
-> 1606 primitive = plotfunc(
   1607     xplt,
   1608     yplt,
   1609     zval,
   1610     ax=ax,
   1611     cmap=cmap_params["cmap"],
   1612     vmin=cmap_params["vmin"],
   1613     vmax=cmap_params["vmax"],
   1614     norm=cmap_params["norm"],
   1615     **kwargs,
   1616 )
   1618 # Label the plot with metadata
   1619 if add_labels:

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/xarray/plot/dataarray_plot.py:2315, in pcolormesh(x, y, z, ax, xscale, yscale, infer_intervals, **kwargs)
   2312         y = _infer_interval_breaks(y, axis=0, scale=yscale)
   2314 ax.grid(False)
-> 2315 primitive = ax.pcolormesh(x, y, z, **kwargs)
   2317 # by default, pcolormesh picks "round" values for bounds
   2318 # this results in ugly looking plots with lots of surrounding whitespace
   2319 if not hasattr(ax, "projection") and x.ndim == 1 and y.ndim == 1:
   2320     # not a cartopy geoaxis

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cartopy/mpl/geoaxes.py:306, in _add_transform.<locals>.wrapper(self, *args, **kwargs)
    301     raise ValueError(f'Invalid transform: Spherical {func.__name__} '
    302                      'is not supported - consider using '
    303                      'PlateCarree/RotatedPole.')
    305 kwargs['transform'] = transform
--> 306 return func(self, *args, **kwargs)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/cartopy/mpl/geoaxes.py:1777, in GeoAxes.pcolormesh(self, *args, **kwargs)
   1774 # Add in an argument checker to handle Matplotlib's potential
   1775 # interpolation when coordinate wraps are involved
   1776 args, kwargs = self._wrap_args(*args, **kwargs)
-> 1777 result = super().pcolormesh(*args, **kwargs)
   1778 # Wrap the quadrilaterals if necessary
   1779 result = self._wrap_quadmesh(result, **kwargs)

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/matplotlib/__init__.py:1521, in _preprocess_data.<locals>.inner(ax, data, *args, **kwargs)
   1518 @functools.wraps(func)
   1519 def inner(ax, *args, data=None, **kwargs):
   1520     if data is None:
-> 1521         return func(
   1522             ax,
   1523             *map(cbook.sanitize_sequence, args),
   1524             **{k: cbook.sanitize_sequence(v) for k, v in kwargs.items()})
   1526     bound = new_sig.bind(ax, *args, **kwargs)
   1527     auto_label = (bound.arguments.get(label_namer)
   1528                   or bound.kwargs.get(label_namer))

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/matplotlib/axes/_axes.py:6525, in Axes.pcolormesh(self, alpha, norm, cmap, vmin, vmax, colorizer, shading, antialiased, *args, **kwargs)
   6522 shading = shading.lower()
   6523 kwargs.setdefault('edgecolors', 'none')
-> 6525 X, Y, C, shading = self._pcolorargs('pcolormesh', *args,
   6526                                     shading=shading, kwargs=kwargs)
   6527 coords = np.stack([X, Y], axis=-1)
   6529 kwargs.setdefault('snap', mpl.rcParams['pcolormesh.snap'])

File /g/data/xp65/public/apps/med_conda/envs/analysis3-25.06/lib/python3.11/site-packages/matplotlib/axes/_axes.py:6029, in Axes._pcolorargs(self, funcname, shading, *args, **kwargs)
   6027     if funcname == 'pcolormesh':
   6028         if np.ma.is_masked(X) or np.ma.is_masked(Y):
-> 6029             raise ValueError(
   6030                 'x and y arguments to pcolormesh cannot have '
   6031                 'non-finite values or be of type '
   6032                 'numpy.ma.MaskedArray with masked values')
   6033     nrows, ncols = C.shape[:2]
   6034 else:

ValueError: x and y arguments to pcolormesh cannot have non-finite values or be of type numpy.ma.MaskedArray with masked values

../../_images/01-Cooking-Tutorials_02-Advanced_Model_Agnostic_Analysis_54_1.png

This error:

ValueError: x and y arguments to pcolormesh cannot have non-finite values or be of type numpy.ma.core.MaskedArray with masked values

is because there are NaN values in the coordinate variables, as explained in the plotting with cartopy tutorial.

By following the instructions in that tutorial and the Spatial selection with tripolar ACCESS-OM2 grid notebook the coordinates can be fixed by replacing them with coordinates from the ice grid input file. It requires some work, the dimensions must be renamed to match, and coordinates converted from radians to degrees.

[27]:

ice_grid = xr.open_dataset('/g/data/ik11/inputs/access-om2/input_eee21b65/cice_025deg/grid.nc').rename({'ny': 'nj', 'nx': 'ni'})
ice_grid = ice_grid.pint.quantify()

ice_air_temp = ice_air_temp.assign_coords({'TLON': ice_grid.tlon.pint.to('degrees_E'),
                                           'TLAT': ice_grid.tlat.pint.to('degrees_N')})
ice_air_temp

WARNING:pint.util:Redefining 'degrees_north' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degrees_N' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degreesN' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degree_north' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degree_N' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degreeN' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degrees_east' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degrees_E' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degreesE' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degree_east' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degree_E' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'degreeE' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)
WARNING:pint.util:Redefining 'gpm' (<class 'pint.delegates.txt_defparser.plain.UnitDefinition'>)

[27]:

<xarray.DataArray 'Tair_m' (time: 732, nj: 1080, ni: 1440)> Size: 5GB
dask.array<concatenate, shape=(732, 1080, 1440), dtype=float32, chunksize=(1, 540, 720), chunktype=numpy.ndarray>
Coordinates:
  * time     (time) datetime64[ns] 6kB 1958-02-01 1958-03-01 ... 2019-01-01
    TLON     (nj, ni) float64 12MB [degrees_E] -279.9 -279.6 ... 80.0 80.0
    TLAT     (nj, ni) float64 12MB [degrees_N] -81.08 -81.08 ... 65.13 65.03
Dimensions without coordinates: nj, ni
Attributes:
    units:          C
    long_name:      air temperature
    cell_measures:  area: tarea
    cell_methods:   time: mean
    time_rep:       averaged

Finally, the generic plotting routine works:

[28]:

map_mean_temp_in_degrees_celsius(ice_air_temp)

../../_images/01-Cooking-Tutorials_02-Advanced_Model_Agnostic_Analysis_58_0.png

One more step is to modify the original routine to take the vertical range as an argument, so it is more generally useful:

[30]:

def map_mean_temp_in_degrees_celsius(da, vmin=-2, vmax=30):
    # Take the time mean of da and plot a global temperature field in a Robinson projection
    #
    # Input DataArray (da) should be a 3D array of latitude, longitude and time.

    da = da.pint.quantify().pint.to('C')
    da_time_mean = da.cf.mean('time')

    plt.figure(figsize=(12, 6))
    ax = plt.axes(projection=ccrs.Robinson())

    da_time_mean = da_time_mean.pint.dequantify()
    da_time_mean.cf.plot(ax=ax,
                         x='longitude', y='latitude',
                         transform=ccrs.PlateCarree(),
                         vmin=vmin, vmax=vmax, extend='both',
                         cmap=cm.cm.thermal)

    ax.coastlines()

By specifying default values for the arguments it is completely backwards compatible, we have lost no functionality, but the ice air temperature can now be plotted with a range that better suits the range of the data

[31]:

map_mean_temp_in_degrees_celsius(ice_air_temp, vmin=-30)

../../_images/01-Cooking-Tutorials_02-Advanced_Model_Agnostic_Analysis_62_0.png

Conclusion¶

Model-specific code to take a time mean and plot the data was converted to a model agnostic function with no loss of functionality.

The same function can be used with a wide range CF-compliant data.

In some cases the input data will need to be modified if it is not sufficiently compliant, or non-conforming in some way (such as the ice data above with NaN’s in the coordinate). It is better to modify the data to be more compliant and higher quality, and use generic tools, than have multiple code versions to account for the vagaries or problems of individual datasets.

Ideally, those improvements can be incorporated into future versions of the data at source, in post-processing, or in some utility functions for transforming a class of non-conforming data.

[ ]:

client.close()

Model Agnostic Analysis¶

Introduction¶

What are the CF Conventions?¶

Why bother?¶

How is model agnostic analysis achieved?¶

Example¶

Introduction¶

Client

Cluster Info

LocalCluster

Scheduler Info

Scheduler

Workers

Worker: 0

Worker: 1

Worker: 2

Worker: 3

Worker: 4

Worker: 5

Worker: 6

Worker: 7

Worker: 8

Worker: 9

Worker: 10

Worker: 11

Worker: 12

Worker: 13

Model specific¶

Model agnostic¶

Putting this into practice¶

What to do when it goes wrong¶

Conclusion¶

COSIMA Cookbook

Navigation

Related Topics
